3SE5132-0LB01 | Siemens

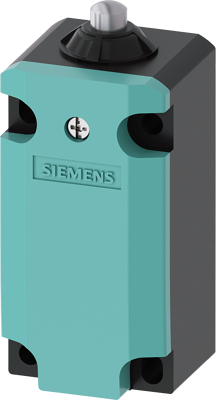

Position sensor, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), dome plunger, screw connection, IP66/IP67, 3SE5132-0LB01
Order No.: 80P7573
EAN: 4011209874077
MPN:
3SE5132-0LB01
3SE51320LB01
Unit Price (€ / pc.)
40.0078 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) 1 NO/2 NC snap-action contacts with Plain plunger with stainless steel plunger Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Latching switching function | 1 Schließer + 2 Öffner | |
| Pin number | 3-polig | |
| Actuator | Kuppenstößel | |
| Connection | Schraubanschluss | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidin-2-thion (2-Imidazolin-2-thiol) |
