3SE5132-3LA00 | Siemens

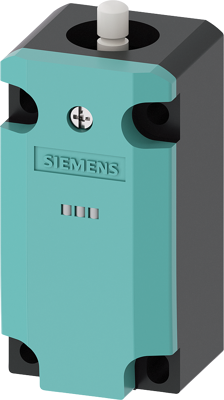

Basic switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), dome plunger, screw connection, IP66/IP67, 3SE5132-3LA00
Order No.: 80P7594
EAN: 4011209878112
MPN:
3SE5132-3LA00
3SE51323LA00
Unit Price (€ / pc.)
56.9177 € *
Available: 0 pcs.
Leadtime: 1 Week **
Basic switch for position switch 3SE51 Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) with 2 LEDs, yellow/green, 24 V DC 1 NO / 2 NC quick action contacts without actuator head Mechanical safety switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Connection | screw connection | |
| Actuator | dome plunger | |
| Pin number | 3 pole | |
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
