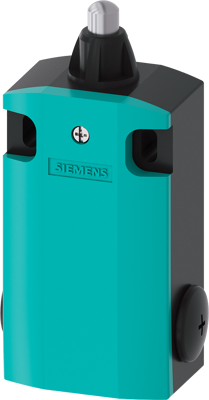

3SE5162-0EC02 | Siemens
Position switch, 5 pole, 2 Form A (N/O) + 3 Form B (N/C), dome plunger, screw connection, IP66/IP67, 3SE5162-0EC02
Order No.: 80P7618
EAN: 4011209862951
MPN:
3SE5162-0EC02
3SE51620EC02
Unit Price (€ / pc.)
135.7314 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch metal enclosur XL, 56 mm wide with rounded plunger, off stainless steel with 3 mm overtravel device connection 3 x(M20 x 1.5), 1 x (1 NO/1 NC) slow-action contact and 1 x (1 NO/2 NC) slow-action contact with make-before-break, IP66/IP67 Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Connection | screw connection | |
| Actuator | dome plunger | |
| Pin number | 5 pole | |
| Latching switching function | 2 Form A (N/O) + 3 Form B (N/C) | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
