3SE5212-0LF10 | Siemens

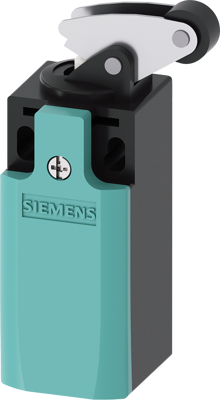

Position sensor, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), angled roller lever, screw connection, IP66/IP67, 3SE5212-0LF10

Order No.: 80P7662
EAN: 4011209862463
MPN:
3SE5212-0LF10
3SE52120LF10
3SE5212-0LF10 Siemens Position Switches
Image may differ
Unit Price (€ / pc.)
48.552 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
48.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
48.552 €
Position switch metal enclosur according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts Angular roller lever with plastic roller 13 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
Latching switching function 1 Schließer + 2 Öffner
Pin number 3-polig
Actuator Winkelrollenhebel
Connection Schraubanschluss
Degree of protection (IP) IP66/IP67
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Imidazolidin-2-thion (2-Imidazolin-2-thiol)
