3SE5232-0HK80 | Siemens
Position switch, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), rod lever, screw connection, IP65, 3SE5232-0HK80
Order No.: 80P7719
EAN: 4011209694378
MPN:
3SE5232-0HK80
3SE52320HK80
Unit Price (€ / pc.)
46.0649 € *
Available: 0 pcs.
Leadtime: 1 Week **

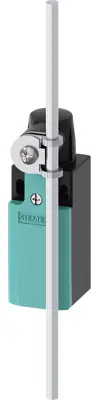

Position switch plastic enclosure according to EN 50047, 31 mm Device connection 1 x(M20 x 1.5), 1 NO/1 NC quick action contacts integrated (not replaceable) Rod lever, Aluminum rod 200 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Connection | screw connection | |
| Actuator | rod lever | |
| Pin number | 2 pole | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
