3SE5232-0LF10 | Siemens

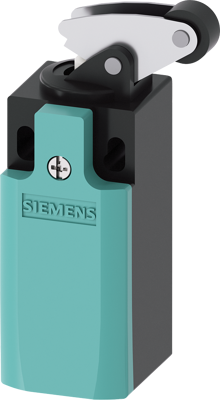

Position switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), angled roller lever, screw connection, IP65, 3SE5232-0LF10
Order No.: 80P7742
EAN: 4011209694606
MPN:
3SE5232-0LF10
3SE52320LF10
Unit Price (€ / pc.)
39.1986 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts, Angular roller lever with plastic roller 13 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Connection | screw connection | |
| Actuator | angled roller lever | |
| Pin number | 3 pole | |
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
