3SE5234-0HK50-1AC4 | Siemens

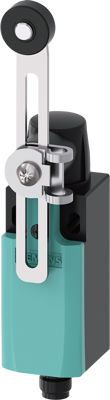

Position sensor, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), adjustable swivel lever, M12-plug, IP65, 3SE5234-0HK50-1AC4
Order No.: 80P7772
EAN: 4011209822382
MPN:
3SE5234-0HK50-1AC4
3SE52340HK501AC4
Unit Price (€ / pc.)
66.0807 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch plastic enclosure according to EN 50047, 31 mm 1 NO/1 NC quick action contacts integrated (not replaceable) with M12 connector, 4-pole Pin assignment: Pin 1=21, Pin 2=22 Pin 3=13, Pin 4=14 for max. 250 V and 4 A adjustable-length twist lever with plastic roller 19 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Latching switching function | 1 Schließer + 1 Öffner | |
| Pin number | 2-polig | |
| Actuator | Schwenkhebel verstellbar | |
| Connection | M12-Stecker | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidin-2-thion (2-Imidazolin-2-thiol), Blei |
