3SE5322-3SG23 | Siemens

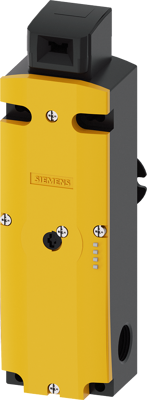

Safety switch, 3 pole, 1 Form A (N/O) + 2 Form B (N/C)/1 Form A (N/O) + 2 Form B (N/C), screw connection, IP65/IP67, 3SE5322-3SG23
Order No.: 80P7878
EAN: 4011209683556
MPN:
3SE5322-3SG23
3SE53223SG23
Unit Price (€ / pc.)
353.1682 € *
Available: 0 pcs.
Leadtime: 1 Week **
Safety position switch with tumbler Locking force 1300 N 5 directions of approaches Spring-locked Escape release from the rear and auxiliary release on front Magnet voltage 230 V AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO LED display yellow/green Supplied without actuator. Actuator 3SE5000-0AV0. please order separately Mechanical safety switches SIRIUS 3SE5 for position monitoring of moving protection equipment. They ensure that protective doors, covers or protective flaps/grilles are kept closed, for as long as a hazardous state exists.
Technical specifications
| Connection | Schraubanschluss | |
| Pin number | 3-polig | |
| Latching switching function | 1 Schließer + 2 Öffner/1 Schließer + 2 Öffner | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei, Bleimonoxid (Bleioxid) |
