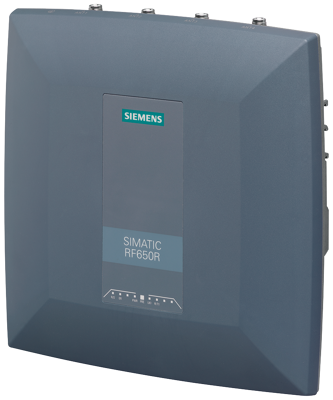

6GT28116AB202AA0, Siemens
SIMATIC RF600 Reader RF650R CMIIT- Interfaces: Ethernet RJ45 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC- IP30- -25 to +55 °C- without accessories and antennas. Powerful UHF-RFID reader for use with up to four external antennas. For identification tasks in the UHF range that demand a high range of several meters. The system is suitable for storing and recording a unique identification according to the EPCglobal standard (Electronic Product Code) on products, containers or transport units. Storage of additional, freely definable user data is also possible. Low-cost basic unit that is especially suited for use in logistics, distribution, supply chain management, or asset management.Cost-effectiveness: Up to four antennas can be connected to the inexpensive base unit. This allows efficient implementation of complex systems such as, for example, systems in dispatch warehouses. IT integration: Thanks to the integrated RJ45 Ethernet interface and XML protocol, the UHF reader can be quickly and easily integrated into existing IT environments. Configuration, commissioning and diagnostics are performed via an easy-to-use Web interface that can be used with a standard Internet browser. A wide range of diagnostic displays, such as the live radio signal diagram or the diagnostic logbook, simplifies and speeds up troubleshooting.
