3SU1150-2BM60-3NA0 | Siemens

Name: Toggle switch, 2 Form A (N/O), 22 mm, round, white, 3 stage, 45°, (On)-Off-(On), 10 A, 500 V, 3SU1150-2BM60-3NA0
Brand: Siemens
SKU: 80P8382
Price: 36.77 EUR
Availability: OutOfStock

Toggle switch, 2 Form A (N/O), 22 mm, round, white, 3 stage, 45°, (On)-Off-(On), 10 A, 500 V, 3SU1150-2BM60-3NA0

Order No.: 80P8382

EAN: 4011209956568

MPN:

3SU1150-2BM60-3NA0

3SU11502BM603NA0

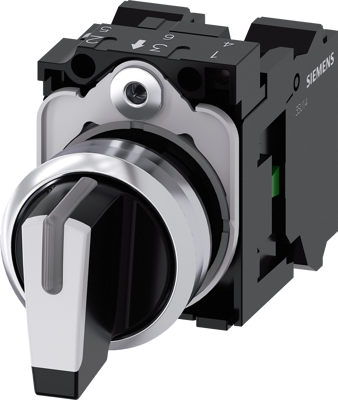

Image may differ

Key Specification:

Ausführung Knebelschalter, 2 Schließer, 22 mm, rund, weiß

Schaltstellung (Ein)-Aus-(Ein)

Schaltwinkel 45 °

Anzahl der Stufen 3

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

36.771 € *

Available: 0 pcs.

Leadtime: 3 Weeks **

Add to Cart

Total Price:

36.77 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 3 switch positions IOII, momentary contact type, actuating angle 2x45°, 10:30h/12h/13:30h, with holder, 1 NO, 1 NO, Spring-type terminal Selector switches SIRIUS ACT for switching and controlling electrical loads.

Technical specifications

	Anschluss	Federzuganschluss
	Anzahl der Stufen	3
	Ausführung	Knebelschalter, 2 Schließer, 22 mm, rund, weiß
	Nennspannung	500 V
	Schaltstellung	(Ein)-Aus-(Ein)
	Schaltstrom	10 A
	Schaltwinkel	45 °

Show similar products 0

Download

Umweltproduktdeklaration - EN Umweltproduktdeklaration

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85365080

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
Nachhaltig	Yes
