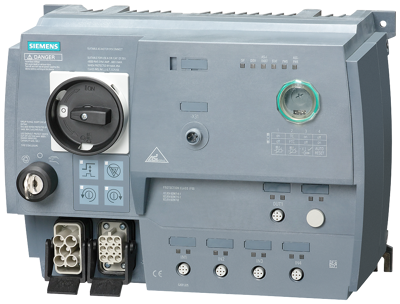

3RK1315-6KS71-2AA0 | Siemens
Motor starter, 2 phase, 0.75 kW, 2 A, 28.8 V (DC), 3RK1315-6KS71-2AA0
Unit Price (€ / pc.)
808.0457 € *
Available: 0 pcs.
Leadtime: On Request **
3RK13156KS712AA0, Siemens
SIRIUS motor starter M200D AS-i Communication: AS-Interface DOL starter Basic Electronic switching AC-3, 0.75KW / 400 V 0.15 A - 2.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC without brake contact 2DI AS-i + 2DI / 1DO on device Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch Motor starters SIRIUS M200D for starting, monitoring and protecting motors and loads for use in the field, for example in conveyor systems.
Technical specifications
| Number of phases | 2 | |
| Version | motor starter | |
| Power | 0.75 kW | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -50 °C | |
| Rated voltage (DC) | 28.8 V | |
| Rated current | 2 A | |
| Standard number | IEC 61000-4-5 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
