3RK1395-6LS71-1AD0 | Siemens

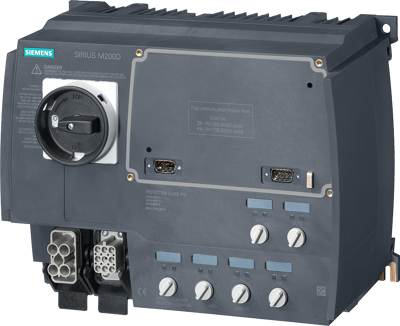

Motor starter, 2 phase, 5.5 kW, 12 A, 28.8 V (DC), 3RK1395-6LS71-1AD0
Unit Price (€ / pc.)
904.0787 € *
Available: 0 pcs.
Leadtime: On Request **
SIRIUS motor starter M200D Technology module Reversing starter Electronic switching AC-3, 5.5 kW / 400 V 1.5 A...12.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC without brake contact 4 DI / 2 DO Han Q4/2 - Han Q8/0 via communication module 3RK1305* can be used on PROFIBUS or PROFINET Motor starters SIRIUS M200D for starting, monitoring and protecting motors and loads for use in the field and for fully TIA-integrated, highly automated applications, for example in conveyor systems.
Technical specifications
| Anzahl der Phasen | 2 | |
| Ausführung | Motorstarter | |
| Leistung | 5.5 kW | |
| max. Temperatur | 55 °C | |
| min. Temperatur | -25 °C | |
| Nennspannung (DC) | 28.8 V | |
| Nennstrom | 12 A | |
| Norm | IEC 61000-4-5 | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85371098 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, 2-Methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-on, Bleimonoxid (Bleioxid) |
