3RW3047-2BB04 | Siemens
Soft starter, 3 phase, 55 kW, 106 A, 24 V (DC), 24 V (AC), 3RW3047-2BB04
Unit Price (€ / pc.)
1,206.2078 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,206.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,206.2078 €

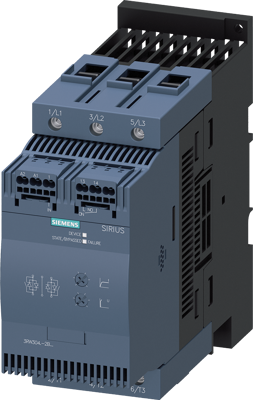

SIRIUS soft starter S3 106 A, 55 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC spring-type terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Technical specifications
| Anzahl der Phasen | 3 | |
| Ausführung | Sanftstarter | |
| Leistung | 55 kW | |
| max. Temperatur | 60 °C | |
| min. Temperatur | -25 °C | |
| Nennspannung (AC) | 24 V | |
| Nennspannung (DC) | 24 V | |
| Nennstrom | 106 A | |
| Norm | IEC 60947-4-2 | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85371098 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Bleimonoxid (Bleioxid), Blei-Titan-Zirkonnoxid, Blei |
