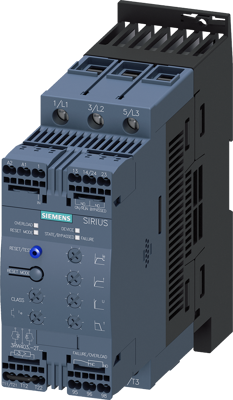

3RW4038-2TB04 | Siemens
Soft starter, 3 phase, 37 kW, 72 A, 24 V (DC), 24 V (AC), 3RW4038-2TB04
Unit Price (€ / pc.)
1,253.0462 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,253.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,253.0462 €
SIRIUS soft starter S2 72 A, 37 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC spring-type terminals Thermistor motor protection Soft starter SIRIUS 3RW40 for standard applications for the soft starting and ramp-down of three-phase asynchronous motors.
Technical specifications
| Number of phases | 3 | |
| Version | Soft starter | |
| Power | 37 kW | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -25 °C | |
| Rated voltage (AC) | 24 V | |
| Rated voltage (DC) | 24 V | |
| Rated current | 72 A | |
| Standard number | IEC 60947-4-2 | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead monoxide, lead titanium zirconium oxide, lead |
