8GK1031-1KK11 | Siemens

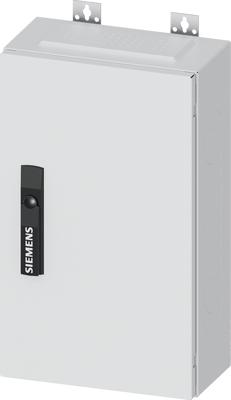

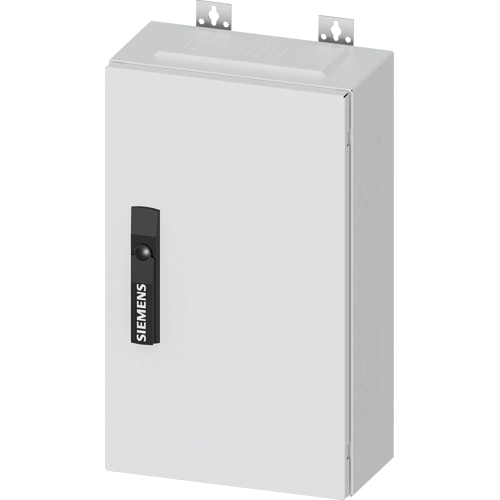

Flush mounted installation distributor, 36 HP, (H x W x D) 513 x 312 x 140 mm, IP31, steel, white, 8GK1031-1KK11
Unit Price (€ / pc.)
194.7673 € *
Available: 0 pcs.
Leadtime: On Request **
ALPHA 160, wall-mounted cabinet, Flush-mounting, IP31, type of protection 2, H: 500 mm, W: 300 mm, T: 140 mm, RAL 9016. The ALPHA distribution board - a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software provides support from planning to documentation of standard and power distribution boards.
Technical specifications
| Ausführung | 36 TE | |
| Breite | 312 mm | |
| Farbe | weiß | |
| Höhe | 513 mm | |
| Material | Stahl | |
| Produkt-Art | Unterputz-Installationsverteiler | |
| Schutzart (IP) | IP31 | |
| Tiefe | 140 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85381000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
