8GK1123-6KA42 | Siemens

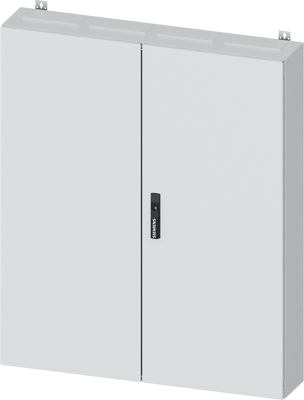

Wall cabinet, (H x W x D) 1250 x 1050 x 210 mm, IP55, steel, white, 8GK1123-6KA42
Unit Price (€ / pc.)
755.0788 € *
Available: 0 pcs.
Leadtime: 1 Week **
ALPHA 400, wall-mounted cabinet, IP55, Protection class 1, H: 1250 mm, W: 1050 mm, T: 210 mm, RAL 9016. The ALPHA distribution board - a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software provides support from planning to documentation of standard and power distribution boards.
Technical specifications

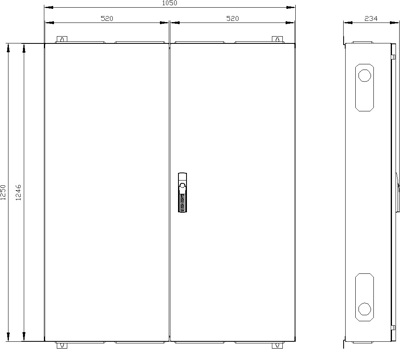

| Version | surface-mounted wall distributor, 384 U | |
| Width | 1050 mm | |
| Colour | white | |
| Height | 1250 mm | |
| Material | steel | |
| Degree of protection (IP) | IP55 | |
| Depth | 210 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
