8GK1423-8KK55 | Siemens

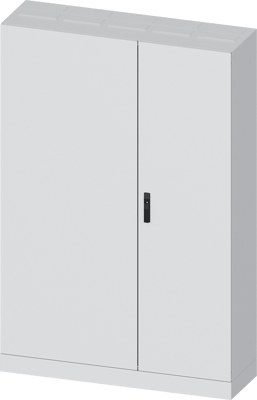

Control cabinet, (H x W x D) 1950 x 1300 x 400 mm, IP55, steel, light gray, 8GK1423-8KK55
Unit Price (€ / pc.)
1,552.3788 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,552.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,552.3788 €
ALPHA 1250, Floor-mounted cabinet, with open side wall, IP55, Protection class 1, H: 1950 mm, W: 1300 mm, T: 400 mm, RAL 7035. The ALPHA distribution board - a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software provides support from planning to documentation of standard and power distribution boards.

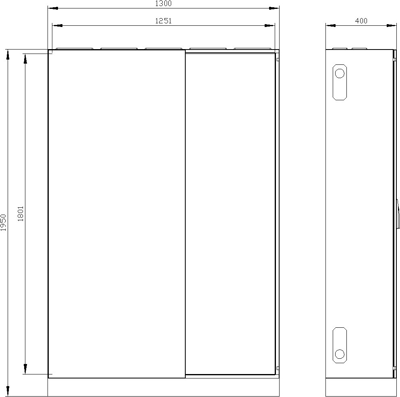

Technical specifications
| Version | control cabinet | |
| Width | 1300 mm | |
| Colour | light gray | |
| Height | 1950 mm | |
| Material | steel | |
| Degree of protection (IP) | IP55 | |
| Depth | 400 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
