3RA2812-2DW10 | Siemens

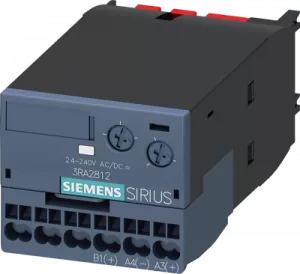

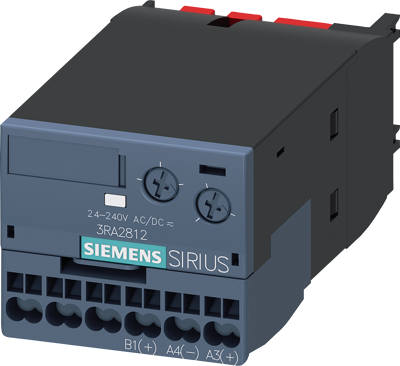

Time relay, 0.05 to 100 s, delayed switch-off, 1 Form A (N/O), 24-240 V AC/DC, 3RA2812-2DW10
Order No.: 27H8455
EAN: 4011209789876
MPN:
3RA2812-2DW10
3RA28122DW10
Unit Price (€ / pc.)
88.5598 € *
Available: 0 pcs.
Leadtime: On Request **
Dlectronic timing relay, off delayed, with control signal and semiconductor output, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, spring-loaded terminal, can be snapped on at the front on contactors 3RT2.1 / 3RT2.2 and auxiliary contactors 3RH2 function module SIRIUS 3RA28 for direct-on-line starting for mounting on 3RT2 contactors and 3RH2 contactor relays for switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup or fan running-on control.
Technical specifications
| Connection | spring connection | |
| Function | delayed switch-off | |
| Contact type | 1 Form A (N/O) | |
| Voltage | 24-240 V AC/DC | |
| Time display | 0.05 to 100 s |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, lead monoxide (lead oxide) |
