3RA2814-1AW10 | Siemens
Auxiliary switch, 0.05 to 100 s, delayed switch-off, 1 Form C (NO/NC), 24-240 V AC/DC, 3 A/250 VAC, 3RA2814-1AW10
Order No.: 81P7264
EAN: 4011209800014
MPN:
3RA2814-1AW10
3RA28141AW10
Unit Price (€ / pc.)
120.8326 € *
Available: 0 pcs.
Leadtime: On Request **

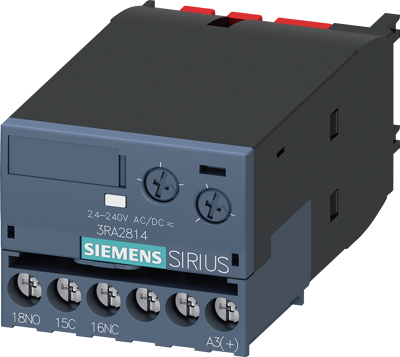

Solid-state time-delayed auxiliary switch, off delayed, with control signal, relay: 1 CO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped on at the front on contactors 3RT2 and auxiliary contactors 3RH2 Solid-state time-delay auxiliary switch SIRIUS 3RA28 for the delayed switching of downstream circuits for mounting on 3RT2 contactors and 3RH2 contactor relays.
Technical specifications
| Anschluss | Schraubanschluss | |
| Funktion | ausschaltverzögert | |
| Kontaktart | 1 Wechsler | |
| Schaltleistung | 3 A/250 VAC | |
| Spannung | 24-240 V AC/DC | |
| Zeitanzeige | 0,05 bis 100 s |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, Bleimonoxid (Bleioxid) |
