3RA2814-1FW10 | Siemens

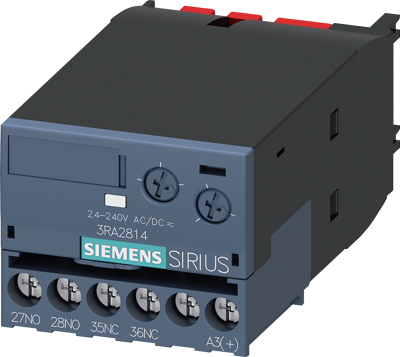

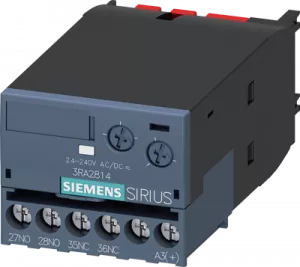

Name: Auxiliary switch, 0.05 to 100 s, delayed switch-off, 1 Form A (N/O) + 1 Form B (N/C), 24-240 V AC/DC, 3 A/250 VAC, 3RA2814-1FW10
Brand: Siemens
SKU: 81P7265
Price: 134.08 EUR
Availability: OutOfStock

Auxiliary switch, 0.05 to 100 s, delayed switch-off, 1 Form A (N/O) + 1 Form B (N/C), 24-240 V AC/DC, 3 A/250 VAC, 3RA2814-1FW10

Order No.: 81P7265

EAN: 4011209789937

MPN:

3RA2814-1FW10

3RA28141FW10

Image may differ

Key Specification:

Zeitanzeige 0,05 bis 100 s

Funktion ausschaltverzögert

Kontaktart 1 Schließer + 1 Öffner

Spannung 24-240 V AC/DC

Schaltleistung 3 A/250 VAC

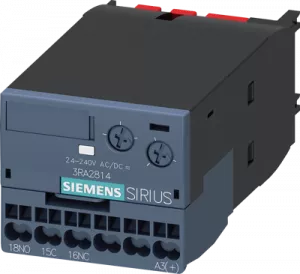

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

134.0773 € *

Available: 0 pcs.

Leadtime: 1 Week **

Total Price:

134.08 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Solid-state time-delayed auxiliary switch, off delayed, with control signal, relay 1 NC + 1 NO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped on at the front on contactors 3RT2 and auxiliary contactors 3RH2 Solid-state time-delay auxiliary switch SIRIUS 3RA28 for the delayed switching of downstream circuits for mounting on 3RT2 contactors and 3RH2 contactor relays.

Technical specifications

	Anschluss	Schraubanschluss
	Funktion	ausschaltverzögert
	Kontaktart	1 Schließer + 1 Öffner
	Schaltleistung	3 A/250 VAC
	Spannung	24-240 V AC/DC
	Zeitanzeige	0,05 bis 100 s
