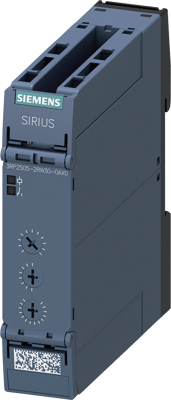

3RP2505-2RW30-0AX0 | Siemens
Multifunction relay, 0.05 s to 100 h, 13 functions, 2 Form C (NO/NC), 24-240 V AC/DC, 3 A/250 VAC, 3RP2505-2RW30-0AX0
Order No.: 27H8717
EAN: 4047621090405
MPN:
3RP2505-2RW30-0AX0
3RP25052RW300AX0
Unit Price (€ / pc.)
215.3543 € *
Available: 0 pcs.
Leadtime: On Request **
Timing relay, Multifunction with painted PCB 2 change-over contacts, 13 functions Positively driven Relay contacts 24...240 V AC/DC at 50/60 Hz AC 7 time ranges (0.05 s...100 h) with LED Spring-type terminal (push-in) timing relay SIRIUS 3RP25, 13 functions, suitable for railway applications, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Technical specifications
| Connection | spring connection | |
| Function | 13 functions | |
| Contact type | 2 Form C (NO/NC) | |
| Breaking capacity | 3 A/250 VAC | |
| Voltage | 24-240 V AC/DC | |
| Time display | 0.05 s to 100 h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, lead monoxide (lead oxide) |
