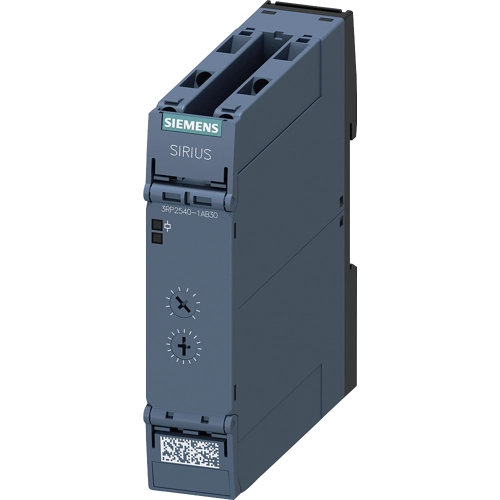

3RP2540-1AB30 | Siemens
Time relay, 0.05 to 600 s, delayed switch-off, 1 Form C (NO/NC), 24 V AC/DC, 3 A/250 VAC, 3RP2540-1AB30
Order No.: 27H8734
EAN: 4011209943735
MPN:
3RP2540-1AB30
3RP25401AB30
Unit Price (€ / pc.)
140.7056 € *
Available: 0 pcs.
Leadtime: On Request **
Timing relay, electronic OFF delay without control signal or smooth passing make contact non-volatile 24 V AC/DC, 1 change-over contact 7 time ranges, 0.05...600 s with LED, Screw terminal timing relay SIRIUS 3RP25, rückfallverzögert ohne Steuersignal, nullspannungssicher, einschaltwischend, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for controlling the running-on of fans.
Technical specifications
| Connection | screw connection | |
| Function | delayed switch-off | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 3 A/250 VAC | |
| Voltage | 24 V AC/DC | |
| Time display | 0.05 to 600 s |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
