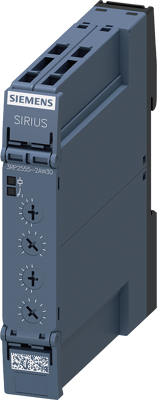

3RP2555-2AW30 | Siemens
Flasher relay, 0.05 s to 100 h, blinking, 1 Form C (NO/NC), 12-240 V AC/DC, 3 A/250 VAC, 3RP2555-2AW30
Order No.: 27H8743
EAN: 4011209943827
MPN:
3RP2555-2AW30
3RP25552AW30
Unit Price (€ / pc.)
157.2466 € *
Available: 0 pcs.
Leadtime: On Request **
Time relay, electronic flasher relay asymmetrical 1 change-over contact 2x7 time ranges, 0.05 s-100 h 12-240 V AC/DC at 50/60 Hz AC with LED, spring-loaded terminal (push-in) timing relay SIRIUS 3RP25, Clock generator, flashing, asymmetrical, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for regular changing of control signal.
Technical specifications
| Connection | spring connection | |
| Function | blinking | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 3 A/250 VAC | |
| Voltage | 12-240 V AC/DC | |
| Time display | 0.05 s to 100 h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
