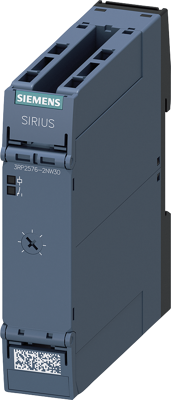

3RP2576-2NW30 | Siemens
Time relay, 3 to 60 s, star-triangle function, 2 Form A (N/O), 12-240 V AC/DC, 3 A/250 VAC, 3RP2576-2NW30
Order No.: 27H8753
EAN: 4011209943872
MPN:
3RP2576-2NW30
3RP25762NW30
Unit Price (€ / pc.)
85.2516 € *
Available: 0 pcs.
Leadtime: On Request **
Timing relay, electronic with star-delta (wye-delta) function 1 NO delayed 1 NO instantaneous 1 time range, 3...60 s 12-240 V AC/DC at 50/60 Hz AC with LED, Spring-type terminal (push-in) timing relay SIRIUS 3RP25, Star-delta (wye-delta) function, for the targeted startup of motors in star-delta (wye-delta) circuits.
Technical specifications
| Connection | spring connection | |
| Function | star-triangle function | |
| Contact type | 2 Form A (N/O) | |
| Breaking capacity | 3 A/250 VAC | |
| Voltage | 12-240 V AC/DC | |
| Time display | 3 to 60 s |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, lead monoxide (lead oxide) |
