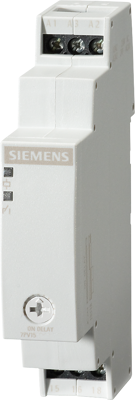

7PV1512-1AP30 | Siemens
Auxiliary switch, 0.5 to 10 s, delayed switch-on, 1 Form C (NO/NC), 24-230 VAC/24 VDC, 3 A/250 VAC, 7PV1512-1AP30
Order No.: 27H9163
EAN: 4011209777330
MPN:
7PV1512-1AP30
7PV15121AP30
Unit Price (€ / pc.)
39.8174 € *
Available: 0 pcs.
Leadtime: 1 Week **
Timing relay, electronic ON delay 1 change-over contact, 1 time range 0.5...10 s 24/230 V AC and 24 V DC with LED, Screw terminal timing relay SIRIUS 7PV15, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup. Can be used in the control cabinet or distribution board.
Technical specifications
| Connection | screw connection | |
| Function | delayed switch-on | |
| Contact type | 1 Form C (NO/NC) | |
| Breaking capacity | 3 A/250 VAC | |
| Voltage | 24-230 VAC/24 VDC | |
| Time display | 0.5 to 10 s |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, lead monoxide (lead oxide) |
