7PV1513-1AQ30 | Siemens

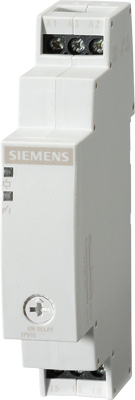

Auxiliary switch, 5 to 100 s, delayed switch-on, 1 Form C (NO/NC), 100-127 VAC/24 VDC, 3 A/250 VAC, 7PV1513-1AQ30
Order No.: 27H9166
EAN: 4011209777347
MPN:
7PV1513-1AQ30
7PV15131AQ30
Unit Price (€ / pc.)
39.8174 € *
Available: 0 pcs.
Leadtime: 1 Week **
Timing relay, electronic ON delay 1 change-over contact, 1 time range 5...100 s 24 V/110 V AC and 24 V DC with LED, Screw terminal timing relay SIRIUS 7PV15, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup. Can be used in the control cabinet or distribution board.
Technical specifications
| Time display | 5 bis 100 s | |
| Function | einschaltverzögert | |
| Contact type | 1 Wechsler | |
| Voltage | 100-127 VAC/24 VDC | |
| Breaking capacity | 3 A/250 VAC | |
| Connection | Schraubanschluss |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei, Bleimonoxid (Bleioxid) |
