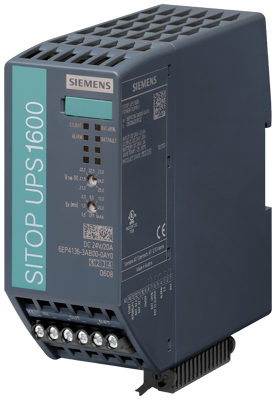

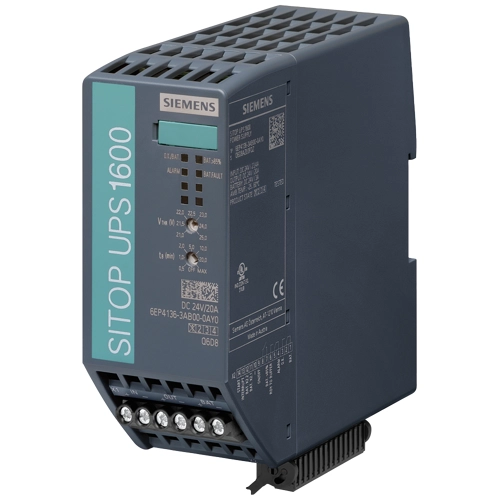

Uninterruptible power supply SITOP UPS1600, 24 V DC/20 A, 6EP4136-3AC00-0AY0
Unit Price (€ / pc.)
352.8707 € *
Available: 1 pcs.
Leadtime: On Request **
6EP41363AC000AY0, Siemens
SITOP UPS1600 EX 20 A uninterruptible power supply input: 24 V DC output: 24 V DC/20 A The SITOP UPS1600 uninterruptible power supply with UPS1100 battery modules is the optimal addition to all 24 V power supplies. It provides buffering for extended power failures over hours and thus ensures interruption-free plant operation The intelligent battery management automatically detects the UPS1100 energy storage device and ensures optimum temperature-controlled charging and continuous monitoring. The compact UPS1600 modules are resistant to overload in order, for example, to supply the inrush current for industrial PCs. The status signal is provided by a signal contact.
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 20 A | |
| Width | 50 mm | |
| Input voltage AC | 21-29 VDC | |
| Height | 139 mm | |
| Length | 125 mm | |
| Power | 480 W | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| efficiency | 97.7 % |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85044060 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
