6SL3210-5FB11-5UA0 | Siemens

Frequency converter, 3-phase, 1.5 kW, 240 V, 31.8 A for servo motor SIMOTICS S-1FL6, 6SL3210-5FB11-5UA0

Order No.: 80P0877
EAN: 4042948674338
MPN:
6SL3210-5FB11-5UA0
6SL32105FB115UA0
Series: SINAMICS V90
Siemens

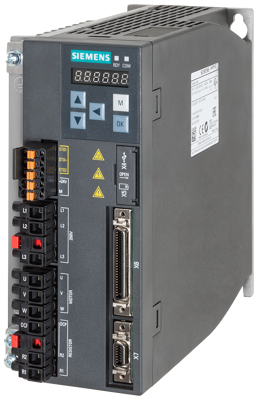

6SL3210-5FB11-5UA0 Siemens Variable speed drive and Accessories
Image may differ
Unit Price (€ / pc.)
742.1554 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
742.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
742.1554 €
SINAMICS V90 Input voltage: 200-240 V 3-P -15%/+10% 11.0 A 45-66 Hz Output voltage: 0 - Input 10.6 A 0-330 Hz Motor: 1.5 kW Degree of Protection: IP20 Size D, 95x170x195 (WxHxD) SINAMICS V90 servo converters - the performance-optimized, easy-to-operate servo drive system for a wide range of motion control tasks focusing on dynamic motion and processing. SINAMICS V90 servo converters are suitable for controlling SIMOTICS S-1FL6 servomotors - both together result in a favorably-priced servo drive system. This sets itself apart as a result of its reliable operation, optimized performance and easy handling. Together with SIMATIC Controller, it makes a strong team in the TIA Portal. Depending on the version, the SINAMICS V-ASSISTANT tool can be downloaded free of charge for fast and easy commissioning. The SINAMICS V90 servo converter is suitable for operation on single- and three-phase networks, and with four frame sizes, it covers a power range from 0.1 kW to 2.0 kW and a voltage range of between 200 V and 240 V. The system can be easily integrated by means of PTI, PROFINET, USS and Modbus RTU. SINAMICS V90 servo converters can be adapted to address specific user requirements using various options such as connecting cables, line filters, connectors and additional accessories.
Technical specifications
Number of phases 3
Version Frequency converter
Output current 31.8 A
Width 95 mm
Suitable for servo motor SIMOTICS S-1FL6
Height 170 mm
Power 1.5 kW
Rated voltage 240 V
Depth 195 mm
Logistics
Country of origin CN
Customs tariff number 85044085
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
