SP232ECN | Sipex-Exar

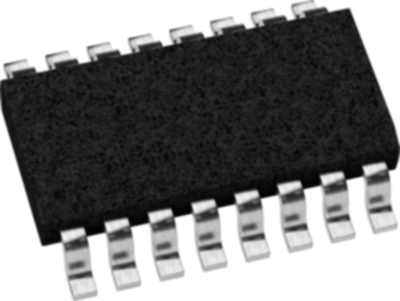

RS-232 Line Driver/Receiver, SOIC-16, Sipex-Exar SP232ECN
Unit Price (€ / pc.)
2.5109 € *
Available: 47 pcs.
Leadtime: On Request **
Total Price:
2.51 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5109 €
50 pcs.
2.1301 €
100 pcs.
2.0587 €
200 pcs.
1.9754 €
1000 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale
Transceiver, SP232ECN, Sipex-Exar
The SP232ECN is pin-to-pin compatible with SP232A and SP233A devices as well as popular industry standard pinouts. The ESD tolerance has been improved on these devices to over ±15kV. This series offers a 120kbps data rate under load, small ceramic type 0.1µF charge pump capacitors and overall ruggedness for commercial applications. Features include BiCMOS design which allows low power operation without sacrificing performance.
Features
- Operates from a single +5V power supply
- Meets all RS-232D and ITU V.28 specifications
- Operates with 0.1µF to 10µF ceramic capacitors
- Low power CMOS operation
- Lead-free packaging
Technical specifications
| Enclosure | SOIC-16 | |
| max. operating temperature | 70 °C | |
| min. operating temperature | 0 °C | |
| Assembly | SMD | |
| Product type | RS-232 Line Driver/Receiver |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
