SI8602AC-B-ISR | Skyworks Solutions Inc.

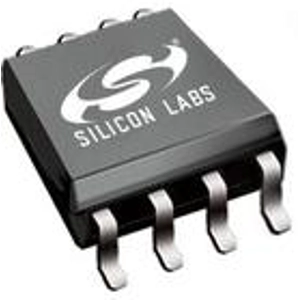

Bidirectional I²C Isolator, SOIC-8, Skyworks Solutions Inc. SI8602AC-B-ISR
Unit Price (€ / pc.)
5.7358 € *
Available: 0 pcs.
Leadtime: On Request **
Digital Isolator, SI8602AC-B-ISR, Skyworks
The Si860x series of isolators are single-package galvanic isolation solutions for I2C and SMBus serial port applications. These products are based on Silicon Labs proprietary RF isolation technology and offer shorter propagation delays, lower power consumption, smaller installed size, and more stable operation with temperature and age versus opto couplers or other digital isolators.
Applications
- Isolated I2C, SMBus
- Isolated digital power supply communications
- Power over Ethernet
Technical specifications
| Number of channels | 2 | |
| Data transmission rate | 10000000 mb/s | |
| Enclosure | SOIC-8 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Product type | Bidirectional I²C Isolator |
Download
Logistics
| Customs tariff number | 85423190 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
