24.0157-22 | Stäubli Electrical Connectors

Alligator clip, red, max. 11 mm, L 54 mm, CAT II, socket 4 mm, 24.0157-22

Order No.: 86F8733
EAN: 842640104607
MPN:
24.0157-22
SAGK4-K ROT
24.0157-22 Stäubli Electrical Connectors Aligator Clips
Image may differ
Unit Price (€ / pc.)
4.4744 € *
Available: 27 pcs.
Leadtime: 3 Weeks **
Total Price:
4.47 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4744 €
25 pcs.
3.9508 €
100 pcs.
3.4748 €
500 pcs.
3.3201 €
1000 pcs.
3.1178 €
*incl. VAT plus shipping costs
**Subject to prior sale

Aligator clip, 24.0157-22, Stäubli Electrical Connectors

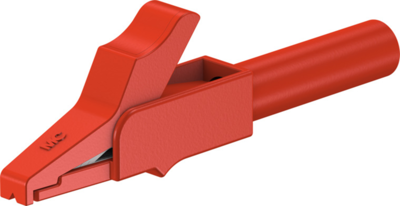

The 24.0157-22 is a small slim red aligator clip made of brass with insulation on all sides and has toothed jaw for rough pick-ups and fine wire surface. This product also has a Ø 4 mm rigid socket in insulator accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.

Technical specifications
clamping force range max. 11 mm
Connection Buchse 4 mm
Colour rot
Contact material Messing
contact surface vernickelt
Rated category CAT II
Rated Voltage 300 V
Rated current 15 A
Length 54 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
