24.0157-23 | Stäubli Electrical Connectors

Alligator clip, blue, max. 11 mm, L 54 mm, CAT II, socket 4 mm, 24.0157-23

Order No.: 86F8734
EAN: 842640104614
MPN:
24.0157-23
SAGK4-K BLAU
24.0157-23 Stäubli Electrical Connectors Aligator Clips
Image may differ
Unit Price (€ / pc.)
4.4744 € *
Available: 27 pcs.
Leadtime: 5 Weeks **
Total Price:
4.47 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4744 €
25 pcs.
3.9508 €
100 pcs.
3.4748 €
500 pcs.
3.3201 €
1000 pcs.
3.1178 €
*incl. VAT plus shipping costs
**Subject to prior sale

Aligator clip, 24.0157-23, Stäubli Electrical Connectors

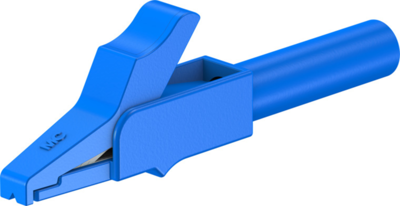

The 24.0157-23 is a small slim blue aligator clip made of brass with insulation on all sides and has toothed jaw for rough pick-ups and fine wire surface. This product also has a Ø 4 mm rigid socket in insulator accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.

Technical specifications
clamping force range max. 11 mm
Connection Buchse 4 mm
Colour blau
Contact material Messing
contact surface vernickelt
Rated category CAT II
Rated Voltage 300 V
Rated current 15 A
Length 54 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
