24.0227-25 | Stäubli Electrical Connectors
Clamp test probe, green, max. 2.5 mm, L 155 mm, CAT III, socket 4 mm, 24.0227-25
Unit Price (€ / pc.)
10.2697 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
10.27 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2697 €
10 pcs.
9.4248 €
50 pcs.
8.8536 €
100 pcs.
8.2824 €
500 pcs.
7.7112 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test clip, 24.0227-25, Stäubli Electrical Connectors
The 24.0227-25 is a test clip with flexible shaft and spring wire grabber (stainless steel) for a good contact to pins and wires in inaccessible places. Especially suitable for measuring voltages. The shaft is silicone insulated and guarantees good heat resistance and flexibility even at low temperatures. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

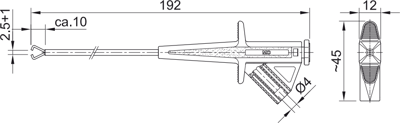

Technical specifications
| Connection | socket 4 mm | |
| Rated Voltage | 1000 V | |
| Rated current | 4 A | |
| Colour | green | |
| clamping force range | max. 2.5 mm | |
| Contact material | stainless steel | |
| Length | 155 mm | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
