65.9187-23 | Stäubli Electrical Connectors

Clamp test probe, blue, max. 2 mm, L 75 mm, CAT II, socket 2 mm, 65.9187-23

Order No.: 35F2284
EAN: 4099889683141
MPN:
65.9187-23
MICROGRIP-XB BLAU
Series: MicroGrip-XB
Stäubli Electrical Connectors
65.9187-23 Stäubli Electrical Connectors Aligator Clips
Image may differ
Unit Price (€ / pc.)
7.3661 € *
Available: 46 pcs.
Leadtime: 6 Weeks **
Total Price:
7.37 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3661 €
10 pcs.
6.4855 €
50 pcs.
5.7001 €
100 pcs.
5.4621 €
500 pcs.
5.1170 €
*incl. VAT plus shipping costs
**Subject to prior sale

Test clip, 65.9187-23, Stäubli Electrical Connectors

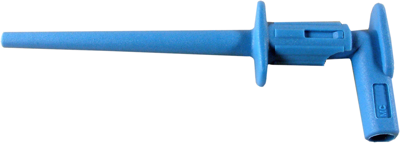

The 65.9187-23 is a blue microgrip test clip with hardened spring wire grabber and gold-plated contact area. This product has a Ø 2 mm rigid socket in handle accepting spring-loaded and Ø 2 mm plugs with rigid insulating sleeve.

Technical specifications
Connection socket 2 mm
Rated Voltage 300 V
Rated current 1 A
Colour blue
clamping force range max. 2 mm
contact surface gold-plated
Length 75 mm
Rated category CAT II
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
