66.9474-26 | Stäubli Electrical Connectors
Alligator clip, purple, max. 20 mm, L 130 mm, CAT IV, socket 4 mm, 66.9474-26
Unit Price (€ / pc.)
10.8171 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8171 €
10 pcs.
9.5200 €
50 pcs.
8.8655 €
100 pcs.
8.4847 €
500 pcs.
8.0563 €
*incl. VAT plus shipping costs
**Subject to prior sale

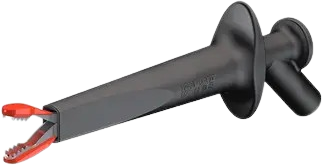

Test clip, 66.9474-26, Stäubli Electrical Connectors
The 66.9474-26 is a test clip with steel jaws especially for connections to ground rails and thick cables. For increased safety when making contacts, the jaws are insulated on the outside. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Connection | socket 4 mm | |
| Rated Voltage | 1000 V | |
| Rated current | 16 A | |
| Colour | purple | |
| clamping force range | max. 20 mm | |
| Contact material | steel | |
| contact surface | nickel-plated | |
| Length | 130 mm | |
| Rated category | CAT IV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
