Aligator clip, 66.9755-20, Stäubli Electrical Connectors

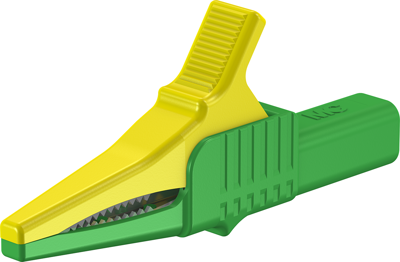

The 66.9755-20 is green/yellow aligator clip made of brass with insulation on all sides and has a toothed jaw for wide grip with surface for fine wire.This product also has Ø 4 mm rigid socket in insulator accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.

Technical specifications
clamping force range max. 20 mm
Connection Buchse 4 mm
Colour grün/gelb
Contact material Messing
contact surface vernickelt
Rated category CAT II
Rated Voltage 1000 V
Rated current 32 A
Length 82.2 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
