66.9755-24 | Stäubli Electrical Connectors
Alligator clip, yellow, max. 20 mm, L 82.2 mm, CAT II, socket 4 mm, 66.9755-24
Unit Price (€ / pc.)
5.5811 € *
Available: 8 pcs.
Next delivery: 25 pcs. on 2025-01-08
Leadtime: 3 Weeks **
Total Price:
5.58 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5811 €
25 pcs.
4.9028 €
100 pcs.
4.3078 €
500 pcs.
4.1293 €
1000 pcs.
3.8675 €
*incl. VAT plus shipping costs
**Subject to prior sale
Aligator clip, 66.9755-24, Stäubli Electrical Connectors

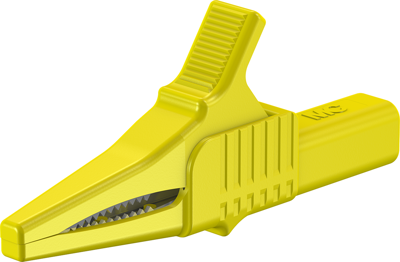

The 66.9755-24 is yellow aligator clip made of brass with insulation on all sides and has a toothed jaw for wide grip with surface for fine wire.This product also has Ø 4 mm rigid socket in insulator accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Connection | socket 4 mm | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Colour | yellow | |
| clamping force range | max. 20 mm | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Length | 82.2 mm | |
| Rated category | CAT II |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
