23.0330-21 | Stäubli Electrical Connectors

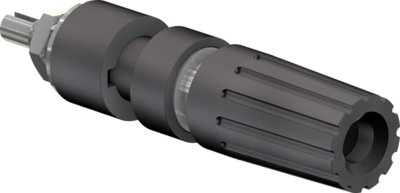

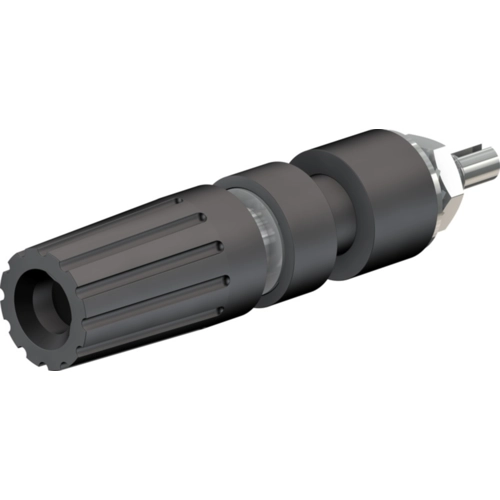

Pole terminal, 4 mm, black, 30 VAC/60 VDC, 35 A, M4 threaded bolt, nickel-plated, 23.0330-21
Unit Price (€ / pc.)
6.3427 € *
Available: 0 pcs.
Next delivery: 38 pcs. on 2025-01-10
Leadtime: 1 Week **
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
25 pcs.
5.5811 €
100 pcs.
5.2717 €
500 pcs.
5.0932 €
1000 pcs.
4.7838 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pole terminal, 23.0330-21, MULTI-CONTACT
4 mm pole clamp black. Insulated, rigid, Ø 4 mm, and captive insulating head, provided with Ø 2.5 mm cross hole for quick wire clamping. Turned brass parts. Installation with anti-twist protection in front panels up to max. 4 mm thickness.
Technical specifications
| Connection | M4 threaded bolt | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 35 A | |
| diameter | 4 mm | |
| Installation diameter | 6.6 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 48.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
