67.9765-28 | Stäubli Electrical Connectors
BNC socket 50 Ω, RG-58, solder connection, straight, 67.9765-28
Unit Price (€ / pc.)
5.5811 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.58 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5811 €
25 pcs.
5.2598 €
50 pcs.
4.9504 €
100 pcs.
4.6410 €
500 pcs.
4.3435 €
*incl. VAT plus shipping costs
**Subject to prior sale

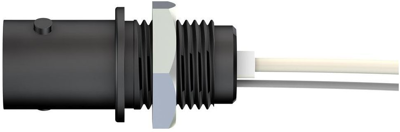

Touch-protected BNC, 67.9765-28, Multi-cont
The 67.9765-28 is a touch-protected BNC panel-mount socket for accepting BNC male connector. The sockets can be screw-mounted into pre-drilled panels of plastic, metal. Shield is nickel-plated, the contact socket of the inner conductor is in goldplated brass. Type XBB-PL with extended shield for better radiation suppression in unmated condition. Solder connection wires.
Technical specifications
| Version | socket | |
| Design | straight | |
| Impedance | 50 Ω | |
| Cable Group | RG-58 | |
| Contact connection | solder connection | |
| Contact material | brass | |
| Connector | BNC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
