67.9766-23 | Stäubli Electrical Connectors

BNC socket, RG58, straight, 67.9766-23

Order No.: 77F9921
EAN: 4099891760243
MPN:
67.9766-23
XBB-C58 BLAU
Series: XBB-C58
Stäubli Electrical Connectors

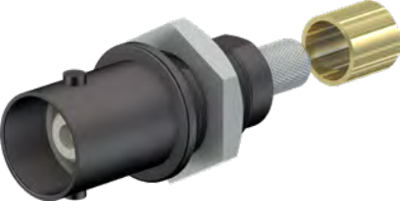

67.9766-23 Stäubli Electrical Connectors Coaxial Connectors Image 1

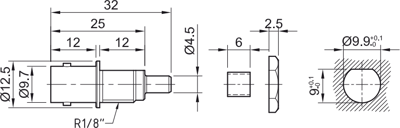

67.9766-23 Stäubli Electrical Connectors Coaxial Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.9619 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.96 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9619 €
25 pcs.
5.6287 €
50 pcs.
5.2717 €
100 pcs.
4.9385 €
500 pcs.
4.5934 €
*incl. VAT plus shipping costs
**Subject to prior sale

BNC panel mount socket, 67.9766-23, Stäubli Electrical Connectors

The 67.9766-23 is a touch-protected BNC panel-mount socket for accepting BNC male connectors. The socket can be screw-mounted into predrilled panels of plastic, metal, etc. Shield is nickel-plated, the contact socket of the inner conductor is in gold-plated brass.

Technical specifications
Version panel socket
Design straight
Cable Group RG58
Contact material brass
Connector BNC
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
