60.7008-10023 | Stäubli Electrical Connectors

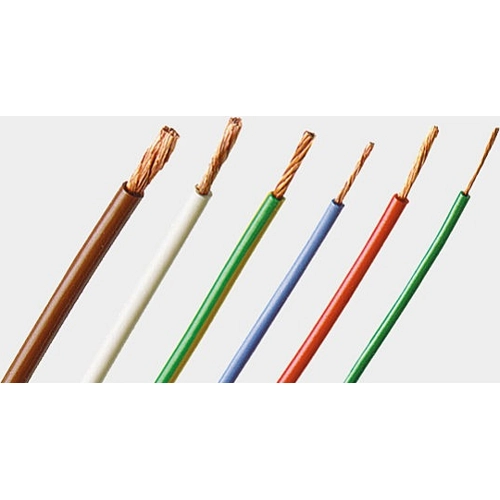

PVC-stranded wire, high flexible, FlexiVolt-E, 1.0 mm², blue, outer Ø 2.7 mm, 60.7008-10023
Unit Price (€ / mtr.)
1.7374 € *
Available: 15 mtr.
Leadtime: On Request **
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 mtr.
1.7374 €
10 mtr.
1.5351 €
100 mtr.
1.3328 €
500 mtr.
1.2376 €
1000 mtr.
1.1424 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 60.7008-10023, Stäubli Electrical Connectors
Highly flexible basic insulated stranded wire.
Applications
- Internal wiring of mobile components
- Highly flexible connecting leads for low-voltage applications
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.7 mm | |
| Colour | blau | |
| Halogen free | No | |
| Cable structure | 259 x 0,07 mm | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,0 mm² | |
| Rated voltage | 750 V | |
| Test voltage | 3.5 kV | |
| Temperature range (active) | -10 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
