60.7009-10029 | Stäubli Electrical Connectors

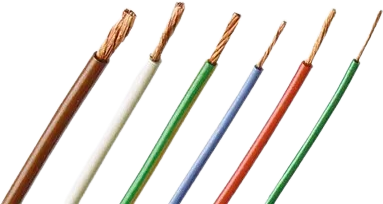

PVC-Stranded wire, high flexible, FlexiVolt-E, 1.0 mm², white, outer Ø 2.7 mm, 60.7009-10029
Unit Price (€ / mtr.)
2.4395 € *
Available: 0 mtr.
Leadtime: 4 Weeks **
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4395 €
10 mtr.
2.1658 €
100 mtr.
1.8802 €
500 mtr.
1.7374 €
1000 mtr.
1.5946 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 60.7009-10029, Stäubli Electrical Connectors
The 60.7009-10029 highly flexible basic insulated stranded wire is suitable for internal wiring of mobile components under moderate mechanical stress and for low-voltage applications in the laboratory field.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.7 mm | |
| Colour | white | |
| Halogen free | No | |
| Cable structure | 511 x 0.05 mm | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage | 750 V | |
| Test voltage | 7.5 kV | |
| Temperature range (active) | -10 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
