60.7010-10022 | Stäubli Electrical Connectors
PVC-Stranded wire, high flexible, FlexiVolt-E, 1.5 mm², red, outer Ø 3 mm, 60.7010-10022
Unit Price (€ / mtr.)
2.3086 € *
Available: 8 mtr.
Next delivery: 100 mtr. on 2025-03-12
Leadtime: 4 Weeks **
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 mtr.
2.3086 €
10 mtr.
2.0468 €
100 mtr.
1.7612 €
500 mtr.
1.6303 €
1000 mtr.
1.4994 €
*incl. VAT plus shipping costs
**Subject to prior sale

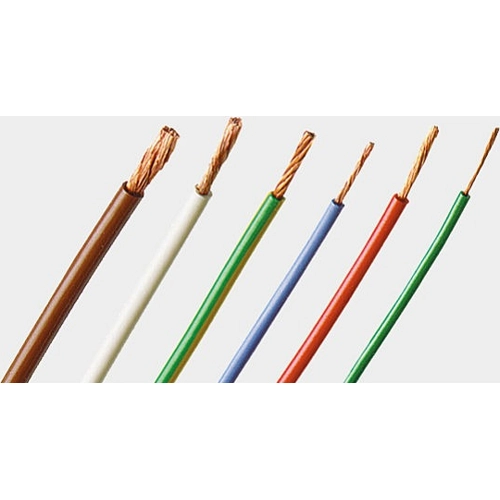

Ultra-flexible stranded wires with PVC insulation, type MC Flexivolt FLEXI-E/.
For test leads etc. Stranded super-fine copper wire
Conductor cross-section 1.5 mm², type FLEXI-E 1,5.
Stranded wire structure 392 x 0.07 mm
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 3 mm | |
| Farbe | rot | |
| Halogenfrei | No | |
| Leiteraufbau | 392 x 0,07 mm | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 750 V | |
| Prüfspannung | 3.5 kV | |
| Temperaturbereich (bewegt) | -10 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Rolle mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
