60.7014-10023 | Stäubli Electrical Connectors

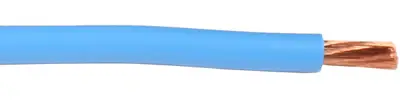

PVC-Stranded wire, high flexible, FlexiStrom, 4.0 mm², blue, outer Ø 4.8 mm, 60.7014-10023
Unit Price (€ / mtr.)
4.2126 € *
Available: 83 mtr.
Leadtime: 5 Weeks **
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 mtr.
4.2126 €
10 mtr.
3.6890 €
100 mtr.
3.2487 €
500 mtr.
3.1297 €
1000 mtr.
2.9155 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 60.7014-10023, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced insulation.
Applications
- Current feeds and earth/ground wires
- Plant and accumulator construction
- Safety test leads carrying high currents
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 4.8 mm | |
| Farbe | blau | |
| Halogenfrei | No | |
| Leiteraufbau | 1036 x 0,07 mm | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 4,0 mm² | |
| Nennspannung | 1.5 kV | |
| Nennspannung UL/CSA | 1.5 kV | |
| Norm | UL | |
| Prüfspannung | 8 kV | |
| Temperaturbereich (bewegt) | -10 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85446010 |
| Originalverpackung | Rolle mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
