60.7028-10025 | Stäubli Electrical Connectors
PVC-stranded wire, highly flexible, FlexiVolt-2V, 0.75 mm², green, outer Ø 3.5 mm, 60.7028-10025
Unit Price (€ / mtr.)
1.9159 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 mtr.
1.9159 €
10 mtr.
1.6779 €
100 mtr.
1.5351 €
500 mtr.
1.4042 €
1000 mtr.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale

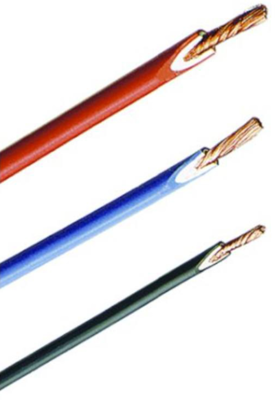

Stranded wire, 60.7028-10025, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognized due to the different color of the underlying layer.
Applications
- Manufacture of test leads
- External wiring of movable elements
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 3.5 mm | |
| Colour | grün | |
| Halogen free | No | |
| Cable structure | 196 x 0,07 mm | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,75 mm² | |
| Rated voltage | 1.5 kV | |
| Standard number | UL | |
| Test voltage | 8 kV | |
| Temperature range (active) | -10 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
