60.7032-10023 | Stäubli Electrical Connectors
PVC-Stranded wire, high flexible, FlexiVolt-2V, 2.5 mm², blue, outer Ø 4.4 mm, 60.7032-10023
Unit Price (€ / mtr.)
3.6295 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.63 € *
Price list
Quantity
Price per unit*
1 mtr.
3.6295 €
10 mtr.
3.2011 €
100 mtr.
2.9036 €
500 mtr.
2.6894 €
1000 mtr.
2.4633 €
*incl. VAT plus shipping costs
**Subject to prior sale

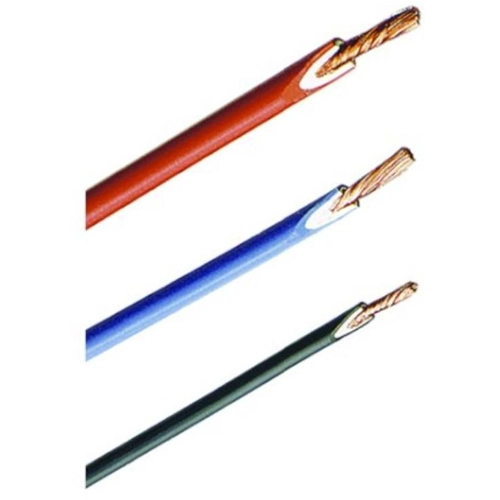

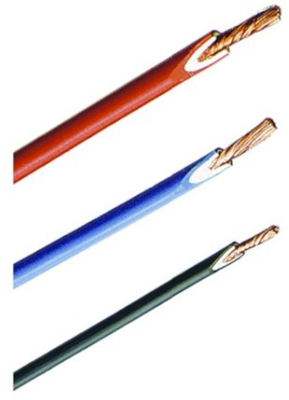

Stranded wire, 60.7032-10023, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognized due to the different color of the underlying layer.
Applications
- Manufacture of test leads
- External wiring of movable elements
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 4.4 mm | |
| Colour | blue | |
| Halogen free | No | |
| Cable structure | 651 x 0.07 mm | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage | 1.5 kV | |
| Standard number | UL | |
| Test voltage | 8 kV | |
| Temperature range (active) | -10 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446010 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
