60.7180-10022 | Stäubli Electrical Connectors
TPE-Stranded wire, high flexible, FlexiPlast-E, 0.5 mm², red, outer Ø 2.1 mm, 60.7180-10022
Unit Price (€ / mtr.)
1.2376 € *
Available: 100 mtr.
Leadtime: 4 Weeks **
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2376 €
10 mtr.
1.0710 €
100 mtr.
0.9877 €
500 mtr.
0.9163 €
1000 mtr.
0.8568 €
*incl. VAT plus shipping costs
**Subject to prior sale

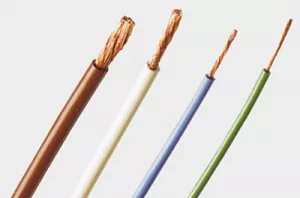

Insulated stranded wire, 60.7180-10022, Stäubli Electrical Connectors
Highly flexible basic insulated stranded wire for internal wiring of mobile components under moderate mechanical stress. This TPE-insulated lead can be used in a wider range of temperatures than comparable PVC-insulated leads. TPE has a substantially higher insulation resistance than PVC and is also free from chlorine, thus making a valuable contribution to the protection of the environment.
Technical specifications
| Aderisolationsmaterial | TPE | |
| Außendurchmesser | 2.1 mm | |
| Farbe | rot | |
| Leiteraufbau | 129 x 0,07 mm | |
| Leitermaterial | Kupfer | |
| Leiterquerschnitt | 0,5 mm² | |
| Nennspannung | 500 V | |
| Prüfspannung | 6 kV | |
| Temperaturbereich (bewegt) | -30 °C bis 90 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85446010 |
| Originalverpackung | Rolle mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
