60.7245-10021 | Stäubli Electrical Connectors

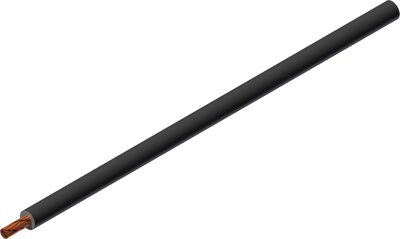

TPE-Stranded wire, high flexible, FlexiPlast-2V, 0.5 mm², black, outer Ø 2.3 mm, 60.7245-10021
Unit Price (€ / mtr.)
1.5708 € *
Available: 448 mtr.
Leadtime: 5 Weeks **
Total Price:
1.57 € *
Price list
Quantity
Price per unit*
1 mtr.
1.5708 €
10 mtr.
1.3685 €
100 mtr.
1.2614 €
500 mtr.
1.1662 €
1000 mtr.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 60.7245-10021, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.
Applications
- Hand-held test leads for maximum safety requirements
- Hand-held test leads for high thermal stress
Technical specifications
| Core insulation material | TPE | |
| Outer diameter | 2.3 mm | |
| Colour | black | |
| Cable structure | 129 x 0.07 mm | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Rated voltage | 1 kV | |
| Test voltage | 6 kV | |
| Temperature range (active) | -30 °C to 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85446090 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
