60.7270-10022 | Stäubli Electrical Connectors

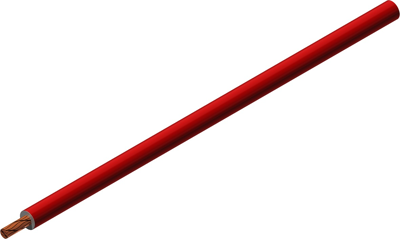

TPE-Stranded wire, high flexible, FlexiPlast-2V, 2.5 mm², red, outer Ø 4.4 mm, 60.7270-10022
Unit Price (€ / mtr.)
4.0341 € *
Available: 20 mtr.
Leadtime: On Request **
Total Price:
4.03 € *
Price list
Quantity
Price per unit*
1 mtr.
4.0341 €
10 mtr.
3.5224 €
100 mtr.
3.2606 €
500 mtr.
2.9869 €
1000 mtr.
2.8084 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 60.7270-10022, Stäubli Electrical Connectors
Highly flexible stranded wire with reinforced double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.
Applications
- Hand-held test leads for maximum safety requirements
- Hand-held test leads for high thermal stress
Technical specifications
| Aderisolationsmaterial | TPE | |
| Außendurchmesser | 4.4 mm | |
| Farbe | rot | |
| Leiteraufbau | 651 x 0,07 mm | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Nennspannung | 1 kV | |
| Prüfspannung | 6 kV | |
| Temperaturbereich (bewegt) | -30 °C bis 90 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85446090 |
| Originalverpackung | Rolle mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
