61.7532-10021 | Stäubli Electrical Connectors

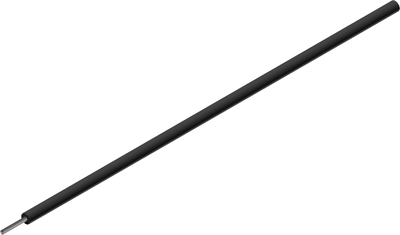

Silicone-stranded wire, highly flexible, halogen free, SiliVolt-E, 0.5 mm², black, outer Ø 2.3 mm, 61.7532-10021
Unit Price (€ / mtr.)
2.4871 € *
Available: 1,171 mtr.
Leadtime: On Request **
Total Price:
2.49 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4871 €
10 mtr.
2.2134 €
100 mtr.
1.9278 €
500 mtr.
1.7612 €
1000 mtr.
1.6184 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 61.7532-10021, Stäubli Electrical Connectors
Super flexible basic insulated stranded wire and tinned wire strands for continuous use at temperatures up to 150 °C.
Applications
- Internal wiring of very mobile components
- Super flexible connecting leads
Technical specifications
| Core insulation material | Silikon | |
| Outer diameter | 2.3 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Cable structure | 129 x 0,07 mm | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,5 mm² | |
| Rated voltage | 300 V | |
| Rated voltage UL/CSA | 300 V | |
| Standard number | UL | |
| Test voltage | 2 kV | |
| Temperature range (active) | -50 °C bis 150 °C |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
